Precision Machining in Engineering Plastics & Polymers: Lightweight, High-Performance Solutions

Metal isn’t always the answer. When your application calls for weight reduction, electrical insulation, chemical resistance, low friction, or reduced noise, high-performance engineering plastics deliver exceptional results.

From ultra-wear-resistant thermoplastics to high-temperature polymers engineered for aerospace and semiconductor environments, our advanced multi-axis CNC machining facility turns and mills tight-tolerance plastic components tailored to your exact specifications.

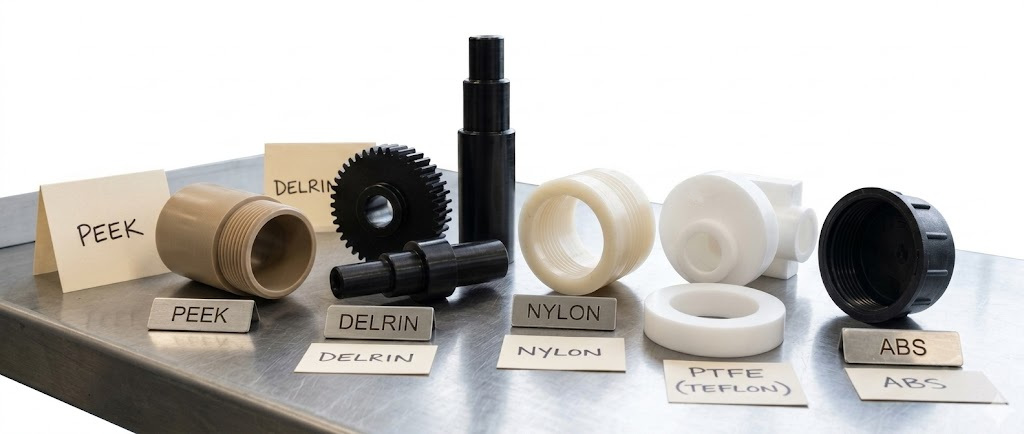

High-Performance Polymer Selection Guide

Selecting the right plastic depends on operating temperature, chemical exposure, mechanical load, and wear requirements:

1. PEEK (Polyetheretherketone): The Ultimate Super-Plastic

• Key Traits: Extreme temperature resistance (260 degree celcius / 500 degree farenhiet continuous), outstanding mechanical strength, chemical inertness, and gamma radiation tolerance.

• Best For: Semiconductor handling components, medical implants/surgical tools, aerospace bushings, and high-pressure valve seats.

• Why Choose It: PEEK offers the structural integrity of metals with a fraction of the weight, standing up to aggressive environments where other plastics melt or degrade.

2. Delrin® / POM (Polyoxymethylene / Acetal): Precision & Low Friction

• Key Traits: High stiffness, excellent dimensional stability, low moisture absorption, and low coefficient of friction.

• Best For: Precision gears, bearings, bushings, conveyor components, wear strips, and fuel system parts.

• Why Choose It: Delrin is one of the most machinable engineering plastics available. It maintains strict dimensional tolerances, cuts cleanly with minimal burrs, and delivers smooth, quiet operation in sliding mechanisms.

3. PTFE (Teflon®): Extreme Chemical Inertness & High Temperature

• Key Traits: Virtually zero coefficient of friction, universal chemical resistance, non-stick properties, and wide operating range (-200 degree celcius  to +260 degree celcius).

• Best For: High-purity fluid seals, gaskets, chemical valve liners, electrical insulators, and labware.

• Why Choose It: When your parts are exposed to harsh acids, solvents, or high-purity process fluids, PTFE provides complete chemical defense and reliable sealing performance.

4. UHMW-PE (Ultra-High-Molecular-Weight Polyethylene): Tough Wear Defense

• Key Traits: Extreme impact resistance, self-lubricating surface, superior abrasion resistance, and high energy absorption.

• Best For: Food processing wear guide rails, chute liners, starwheels, sprockets, and heavy-duty sliding pads.

• Why Choose It: UHMW outwears carbon steel in high-abrasion sliding applications while offering full compliance for food-contact environments.

5. Ultem® (PEI) & Torlon® (PAI): High-Strength Electrical Insulators

• Key Traits: High dielectric strength, excellent flame resistance, and exceptional tensile strength under continuous elevated temperatures.

• Best For: Electrical connectors, IC test sockets, circuit board insulators, and thermal barriers.

• Why Choose It: Perfect for demanding electrical and aerospace applications requiring tight-tolerance dimensional stability and high heat resistance without outgassing.

Engineering Plastics Comparison Matrix

Technical CNC Machining Considerations for Polymers

Machining plastics requires significantly different techniques than cutting metals:

• Thermal Control & Sharp Tooling: Plastics have low thermal conductivity and low melting points. We use razor-sharp, polished-flute carbide tools and specialized air-blast cooling to prevent material melting, gummy edges, or stress buildup.

• Stress Relieving & Annealing: High-performance polymers can deform if residual stresses aren’t managed. Pre-machining and post-machining heat treatment cycles ensure long-term dimensional stability.

• Burr Control & Deburring: Ductile plastics tend to form fine burrs. Our precision multi-axis milling paths and micro-deburring processes ensure crisp, clean edges on every component.

Need Precision Machined Plastic Components?

Whether you require high-purity medical prototypes in PEEK, wear rails in UHMW, or high-volume Delrin turned bushings, our team delivers tight-tolerance plastic components engineered for performance.

Have a print ready or need help choosing the right polymer grade? Contact our engineering team today for a manufacturability review and fast quote!
